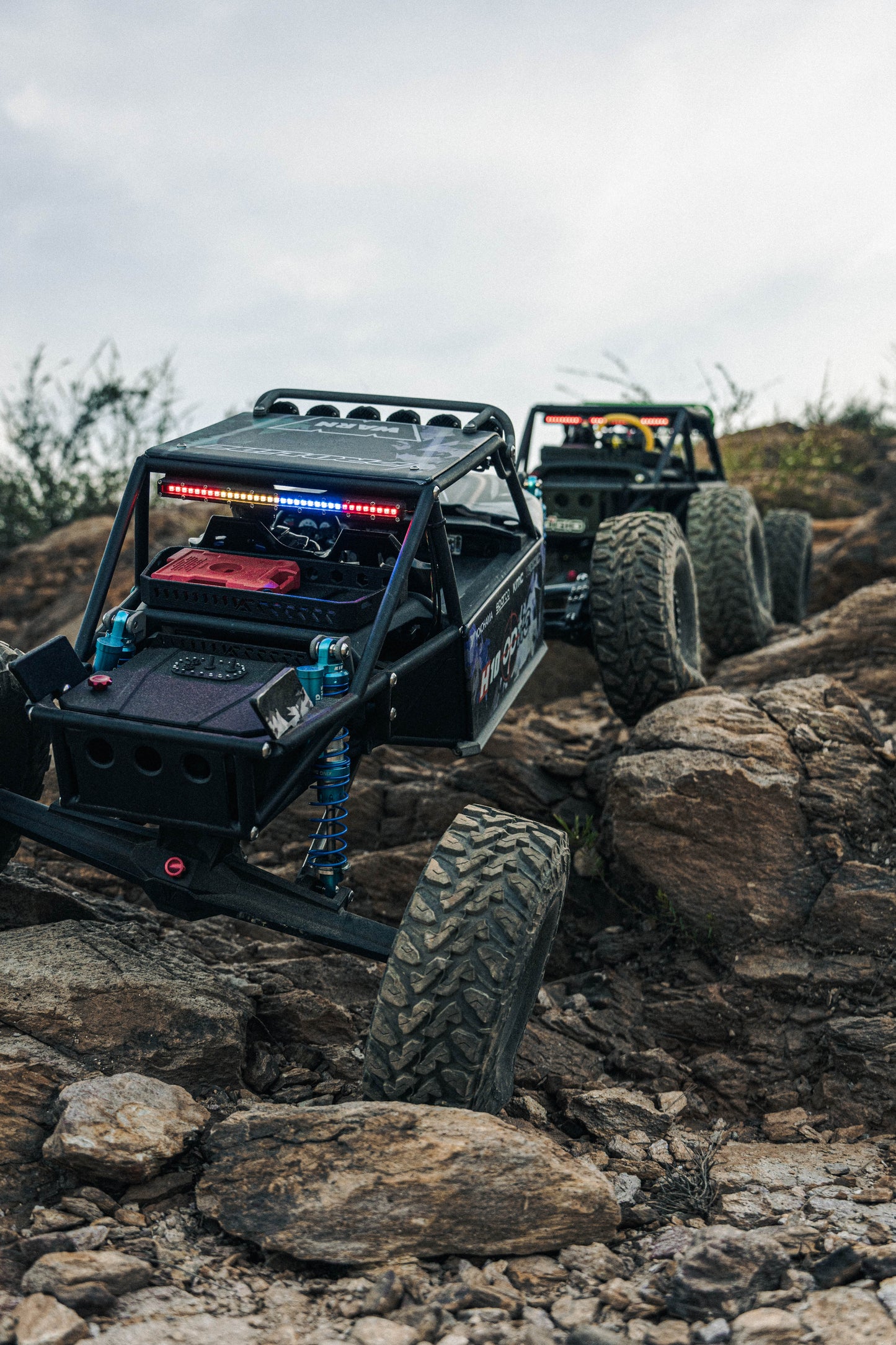

H10 Optic LED Taillight Bar

 H10 Optic LED Taillight Bar for Vanquish H10 Optic

• Nylon material
• Voltage : 6.0 - 8.4V
• Multiple flashing modes can be switched

The controller can use CH3 to switch control modes. (The VP remote control needs to set the L.F.U or R.B.U of the EPR-3C to 50%  ). Connect the 1p wire to CH1

 Controller CH3 Button

• Single click - Turn off all lights
• Double click - Steady red light & four-color light
• Triple click - Car hazard light
• Four clicks - Four-color light flashing
• Five clicks - On off turn signal light mode

The 1p line is used to receive turn signals and is used to run the turn signal light mode. If you do not need this mode, you do not need to connect the 1p line (but it must be connected during calibration)

Module calibration:

1. Power off the receiver

2. Plug the module plug into the receiver

3. Insert the 3P plug into the button channel

4. Insert the 1P plug into the steering channel

5. During calibration, keep your mode switch control channel at the neutral (zero) position .

6. Turn on the remote control (do not press any channel buttons after turning it on)

7. Press and hold the button at the bottom right of the module

8.Power on the receiver

9. When powered on, the light bar will flash red quickly

10. Release the module pairing button

11. Within 1 second, the light bar will flash white quickly, indicating that the pairing is complete
