SR5 Tail Light Bar
SR5 Tail Light Bar
Regular price
$298.00
Regular price
Sale price
$298.00
Unit price
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability

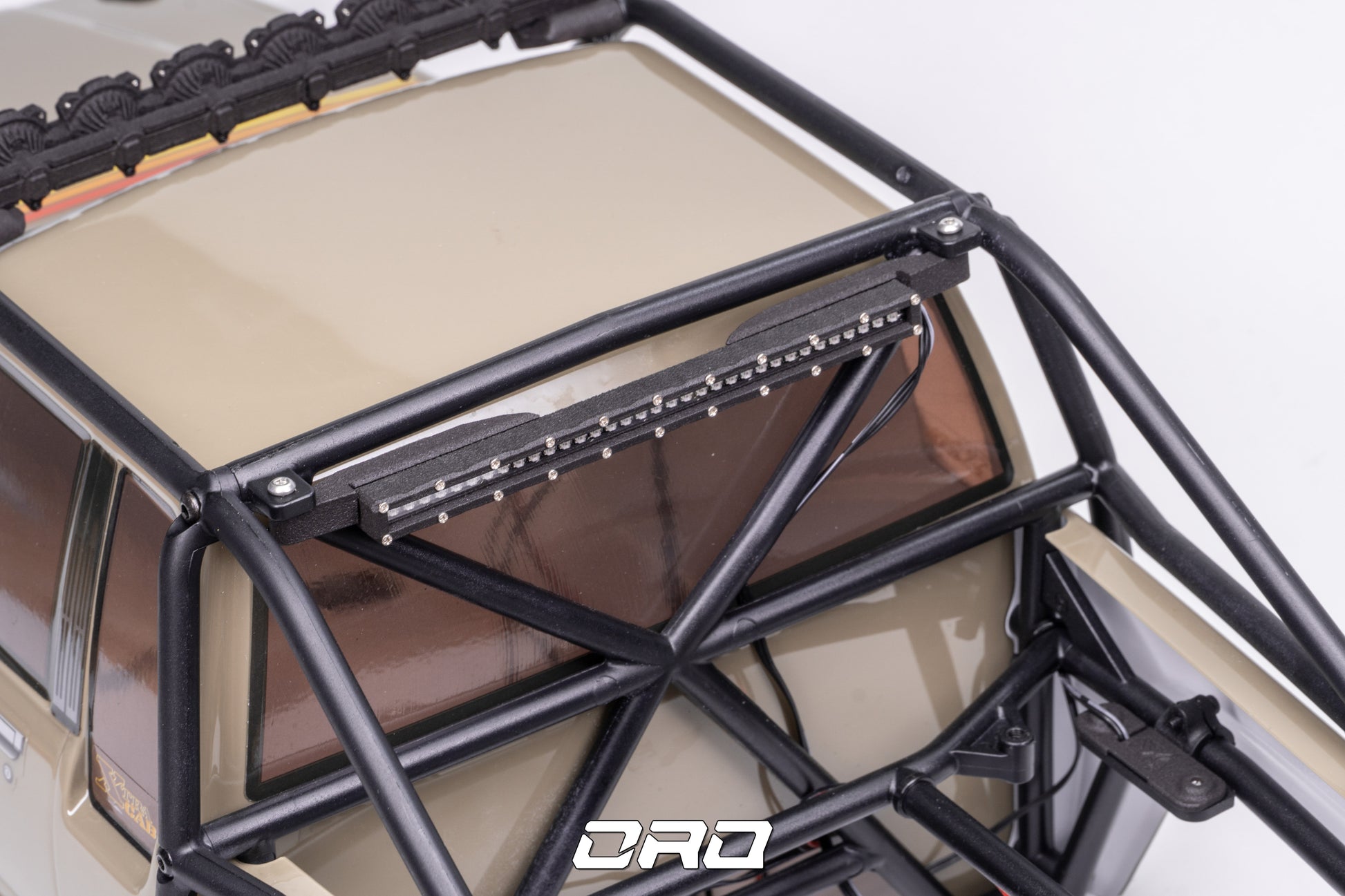

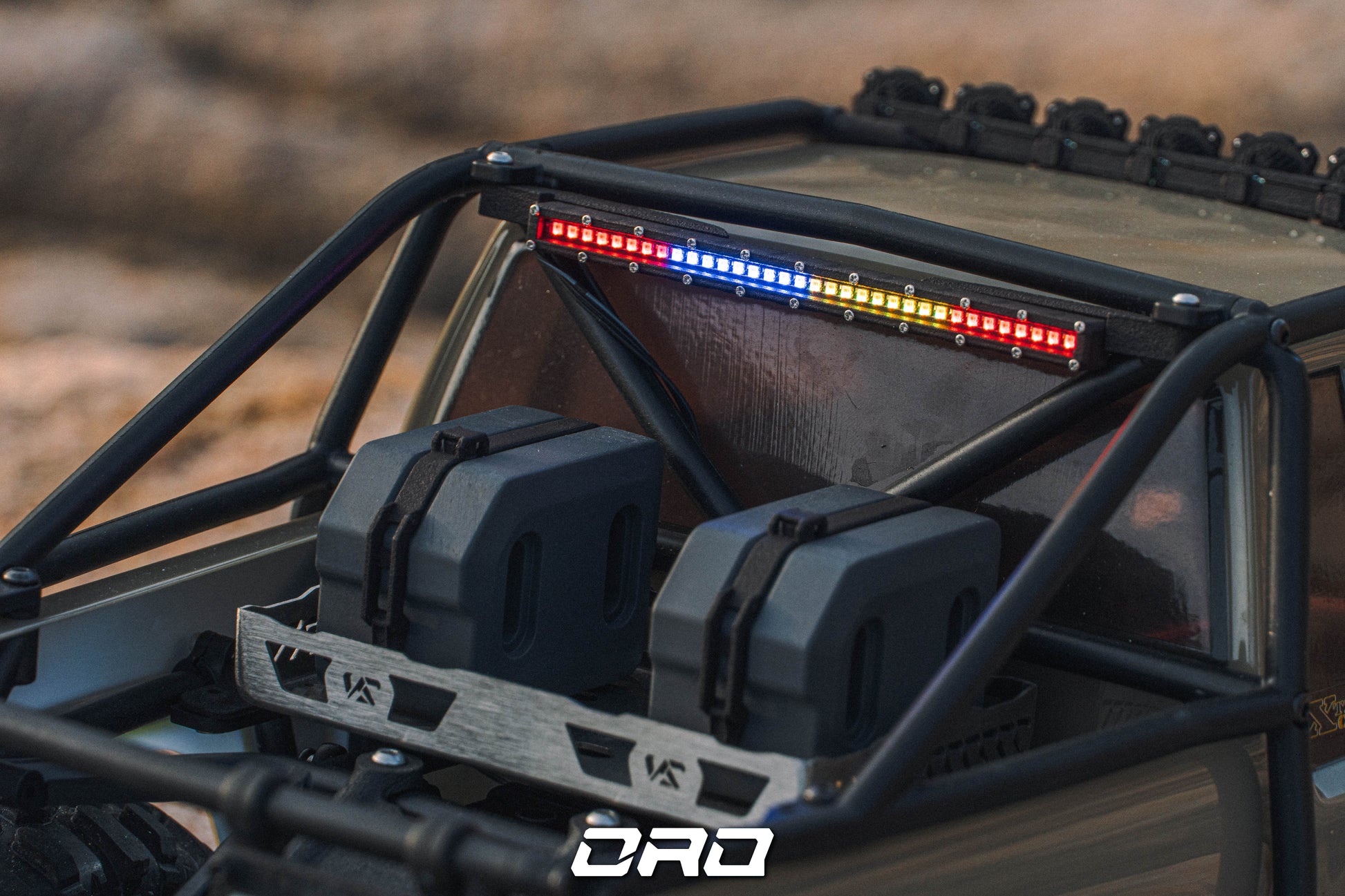

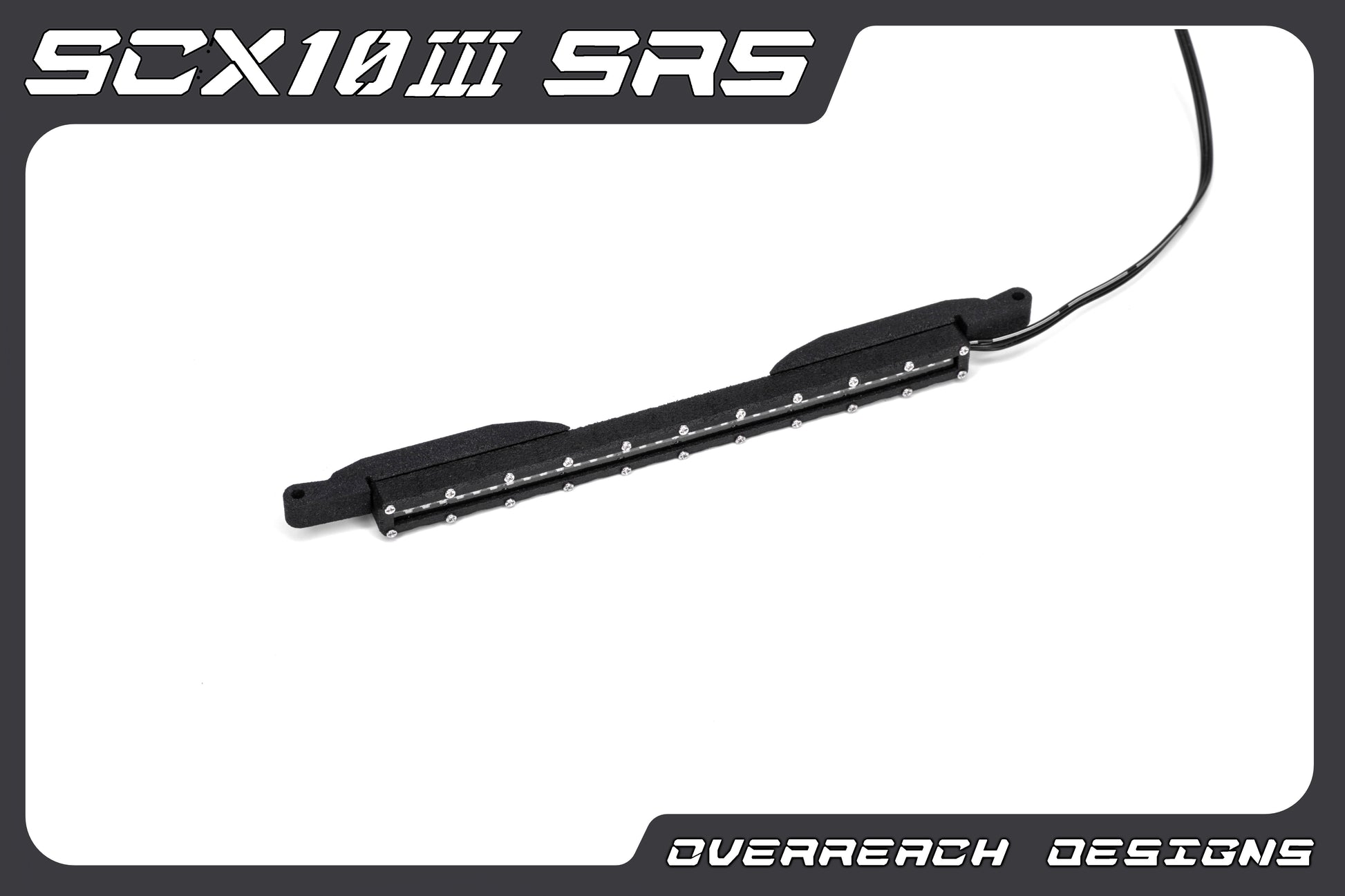

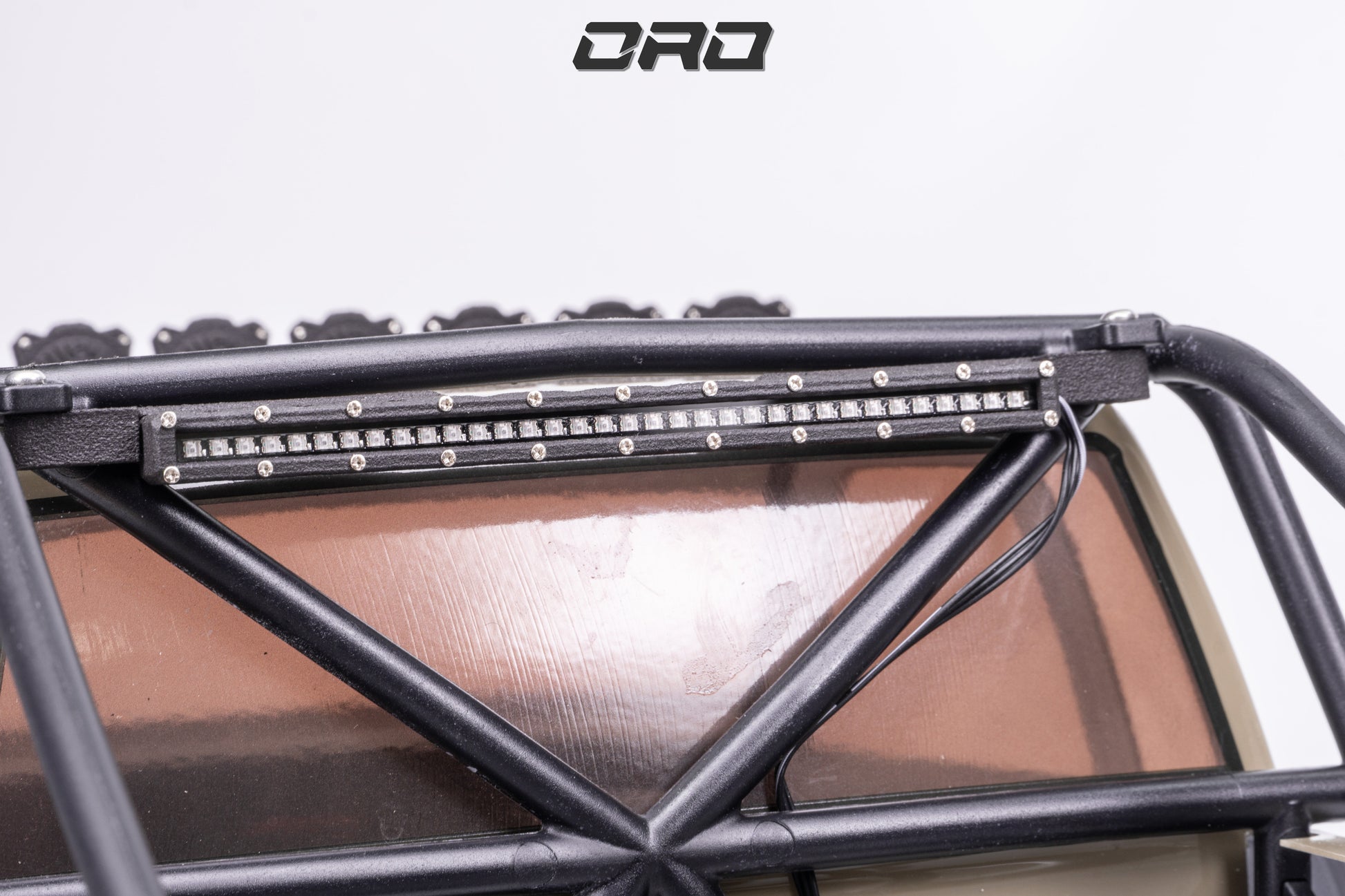

Tail Light Bar for Axial SCX10 III SR5
Feature:
- Nylon material
- Voltage : 6.0 - 12V
- Multiple flashing modes can be switched
Includes:
(1) Tail Light Bar set
(2) M2.5x8mm Hex Socket Screws
⚠️Operation & Compatibility:
This Tail Light Bar is operated via a Channel 3 (CH3) button on your transmitter to toggle power and switch between multiple flashing modes. Please note that on the stock electronics, the Channel 3 function is already occupied by the DIG feature, meaning there is no available channel to control this light set unless you upgrade to a 4-channel (or more) radio system.
Controller CH3 Button
- Single click - Turn off all lights
- Double click - Steady red light & four-color light
- Triple click - Car hazard light
- Four clicks - Four-color light flashing
- Five clicks - On off turn signal light mode

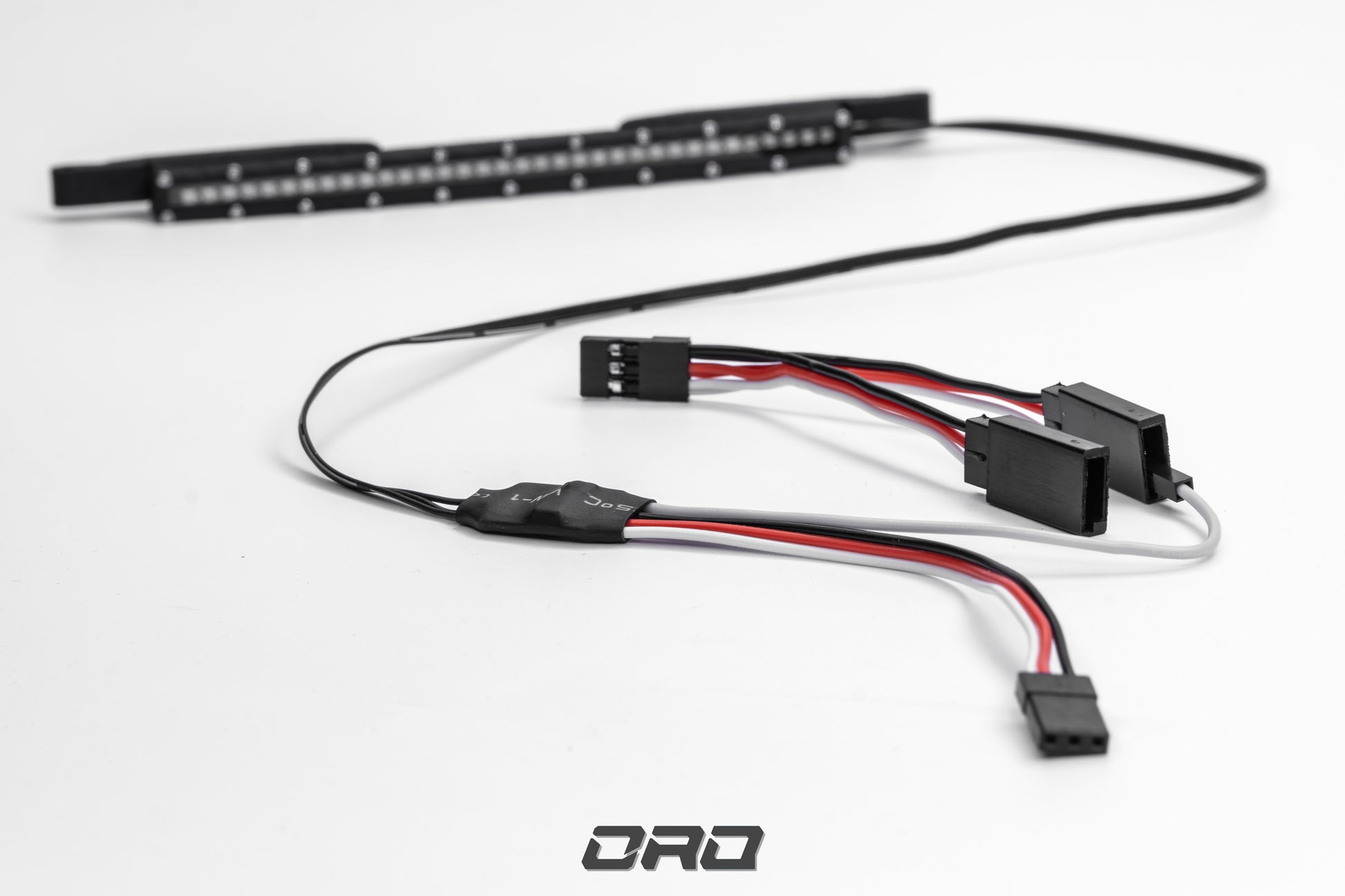

The 1p line is used to receive turn signals and is used to run the turn signal light mode. If you do not need this mode, you do not need to connect the 1p line (but it must be connected during calibration)
